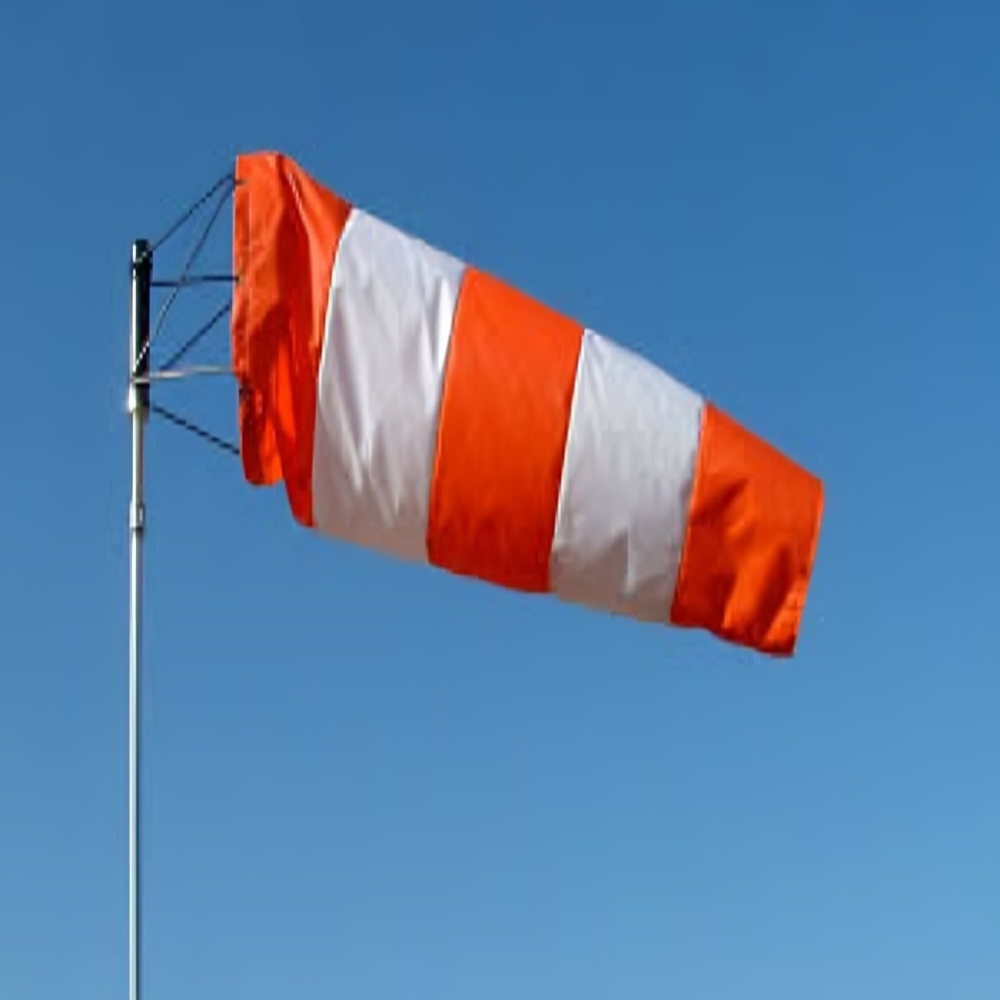

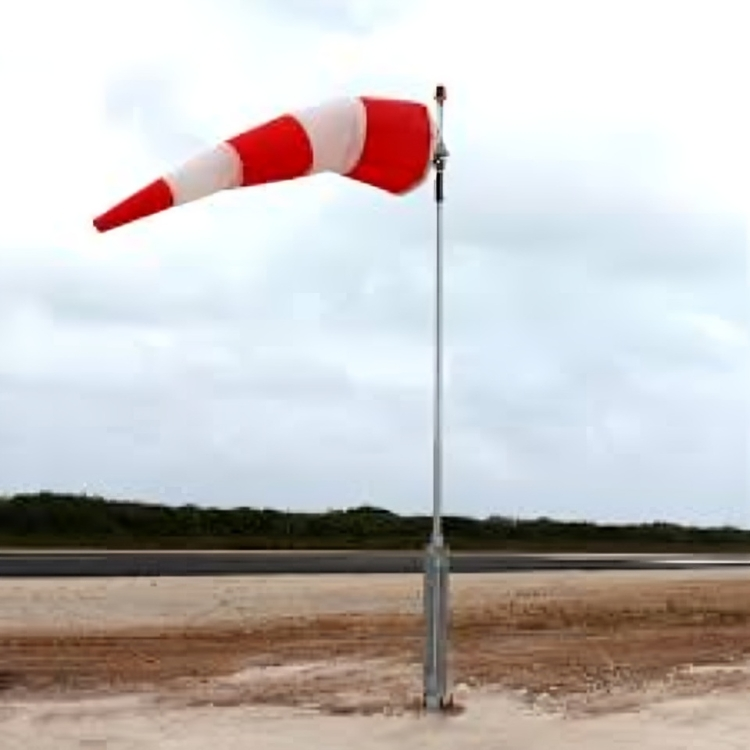

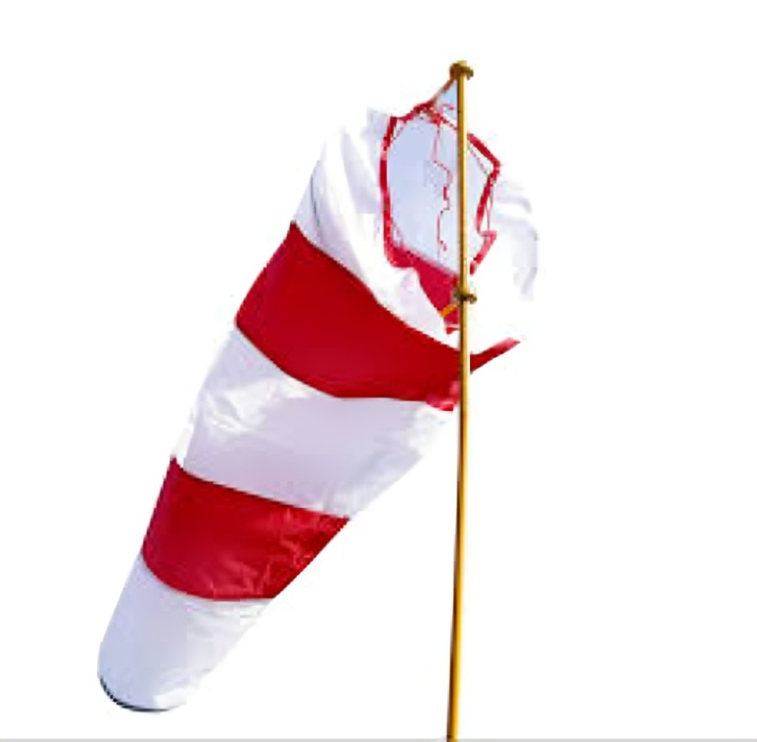

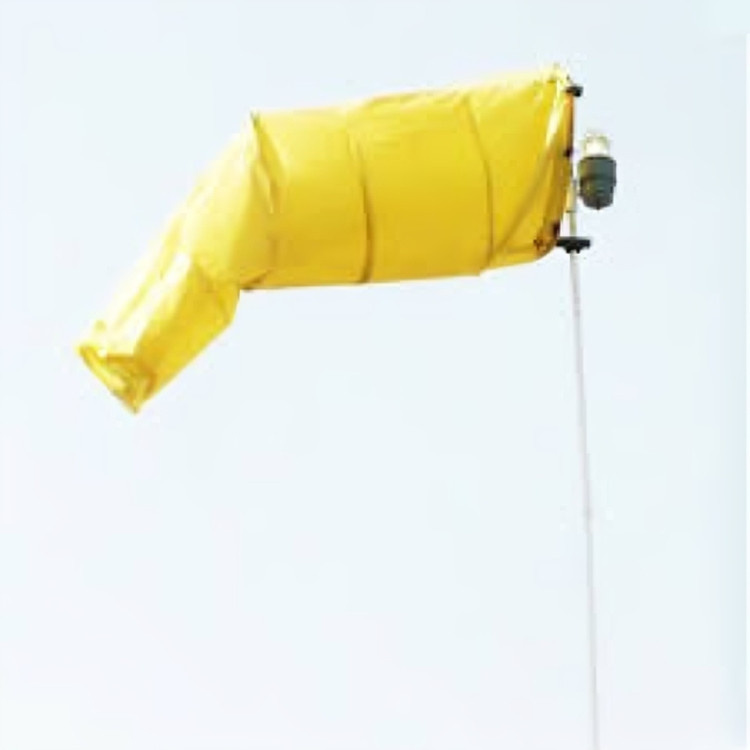

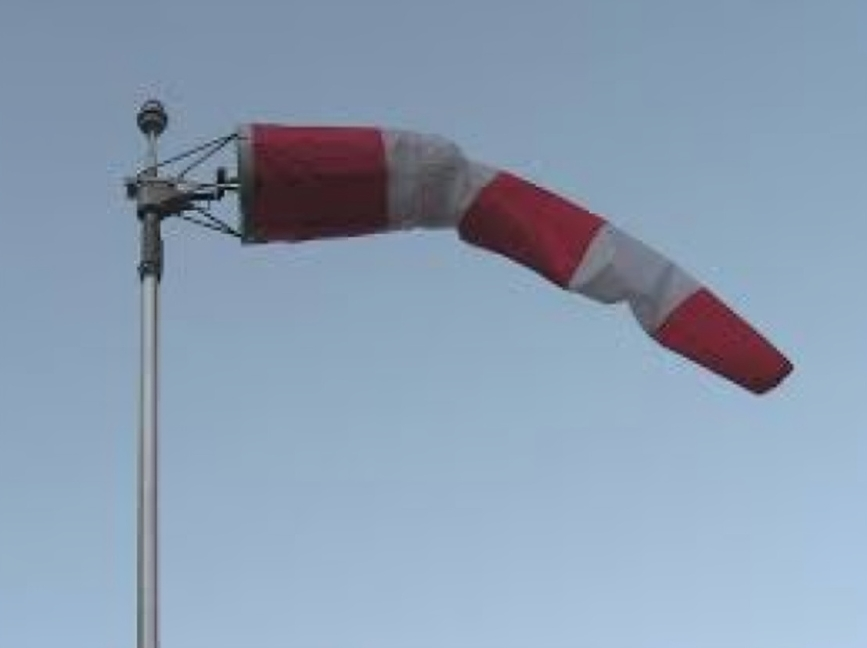

Illuniminated wind shock with stand

Product Description

Specification:

1. Wind Sock Frame Stand made of Heavy Duty GI  pipe

2. LED light of 20 watt of above suitable for outdoor installation

3. GI pipe of D­a 32mm 6 feet Long with pedestal flange

4. Wind Sock made of parachute polyester double lining 2layerCombination of    fluorescent colorred  & white or Fluorescent Orange& Lime green with 25 mm wide reflective tape four rows for night reflection of windsock.

5. Cable of size 2C, 1 Sq./mm copper of 10 mtr with LED light. The LEDilluminated wind socks frame shall be made of GI rod and GI  strips with Extended Spokes cage two feetlong as per design shown in the photos. The frame shall be fixed on rotatablepipe stand 32mm height 6 Feet long with pedestal flange. Windsock Size: Dia 2feet — 6 Feet Long made of parachute polyester double lining 2layerfluorescent color red & white Combination or Fluorescent Orange & Limegreen Combination with 25 mm reflective tape four rows for night reflectionof  Windsock shall be fixed with theframe along with red colored industrial type weather proof Led lights of 20watt and above1 Sq./mm cable fitted with light of 5 mtr per each with set Thetwo bearing to be used must be maintenance free and weather proof

Make: STANDARD

Model: LED WIND SOCK STAND GI

Type: Pole mounted wind sock

Location: Outdoor installation

 Builtin LongLife Lubrication.

 You can replace Ball Bearingeasily.

 Equal Load Capacities in bothdirections.

 360degree rotating system torotate the sock to wind direction

 High Accuracy, Low Friction, LowMaintenance.

 Smooth Running due to New BallRecirculation.

 Comes with Permanent AngleCentral Degree in perfect balance.

 Double Ball Bearing system whichfits all common permanent holders with ball bearing system.

 Fittings & working/partsdouble lubricator ball bearing are provided for long life.

 Stand & Ball Bearing Kit ismade from GI as per demand.
