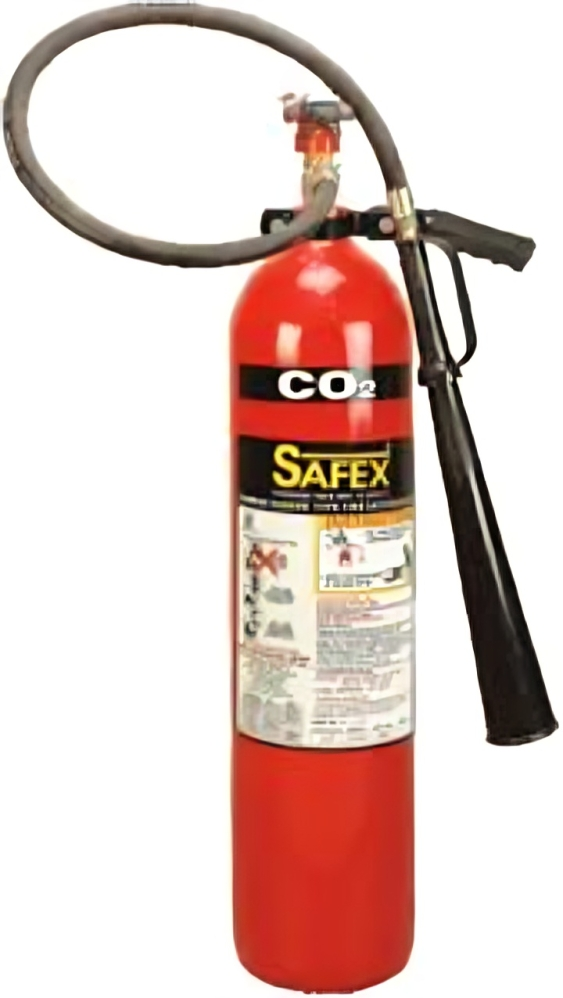

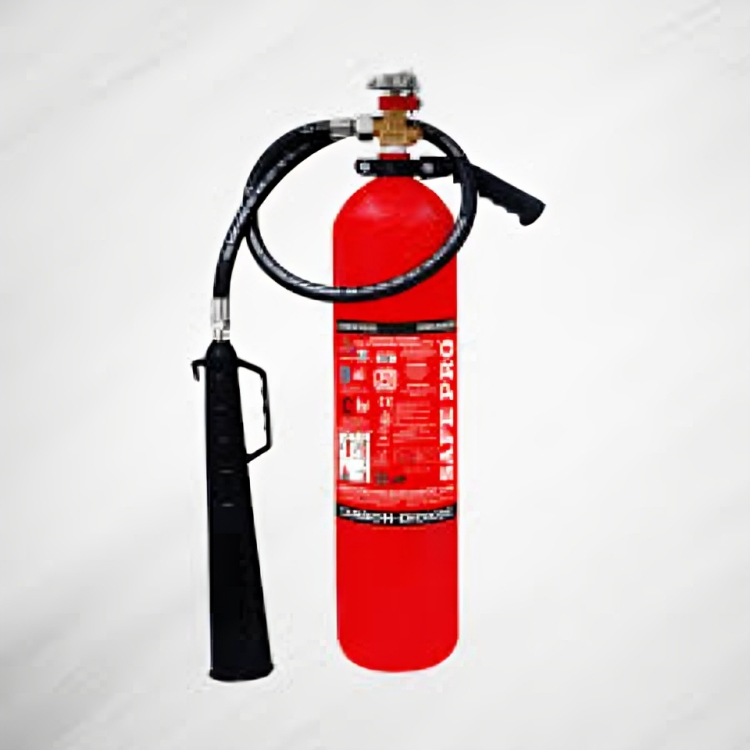

MODEL |
KFCRQ-4.5 |
MODEL |
KFCRQ-4.5 |
Capacity |
4.5 kg |
Design |
Hose and Horn |
Fire Rating |
55B |
Height (Approx.) |
545 mm |
Diameter (Approx.) |
140+/-10 mm |
Average Discharge time |
11 Sec. |
Average Range of throw |
2 m |
Average % Discharge |
98% |
Operating Temperature |
-30 C to +60 C |
Service/Max. service/Test Pressure |
60 / 105 / 205 bar |
Full Weight (Approx.) |
18.5 or 13.5 kg |
Empty Weight (Approx.) |
12.5 or 13.5 kg |
Shipping Weight (Approx.) |
19 or 20 kg |
Mounting Bracket |
Wall bracket |
Approvals |
BIS |
|
|
